Spartherm Linear Tunnel 67x51 RLA

Spartherm Linear Tunnel 67x51 RLA

Spartherm - Linear Tunnel 67x51 RLA

Sleek and expansive see-through tunnel fire.

See-through, tunnel fire with generous flame picture

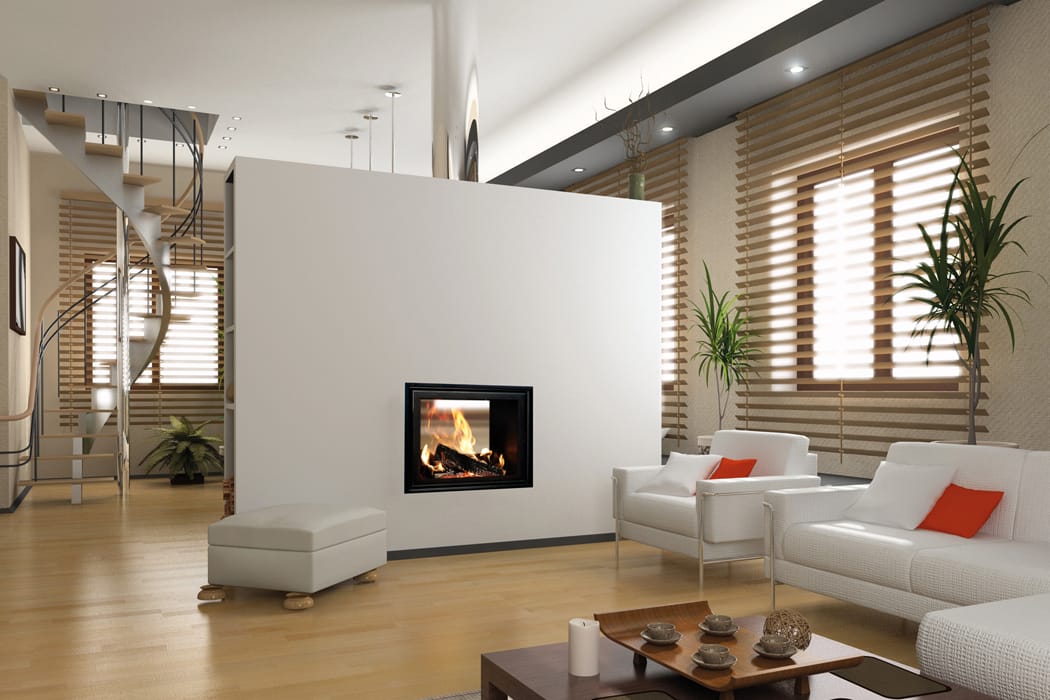

The Linear Tunnel 67x51 RLA is a sleek, expansive see-through fire that displays the flame picture from 2 sides and casts a warm glow around both rooms.  It has the patented elevating door system for easy opening and closing.  The standard fire is supplied with one sliding door with a choice of a solid frame or a frame with sloped sides.  You also have the option of two elevating doors with the frame of your choice.

Series Linear
Category Wood fires
Energy efficiency class A+
Model Built-in
Fire view Tunnel
Shape Square
Fuel Wood
Combustion system Combustion air from living area
Door type Elevating door with fixed handle
Control Manual control
Colours Black
Material Steel
Interior White chamotte
Output net min.  (kW) 8.1
Output net max.  (kW) 15.1
Efficiency (%) 80.0
Consumption wood max (kg/h) 3.4
NOx emission (mg/Nm3-13% O2) 200
Built-in depth (mm) 651
Weight (kg) 378
Flue Top
Flue Ø (mm) 250
External air connection Base
Convection connection
230V necessary
Approvals EN13229

Spartherm Linear Tunnel 67x51 RLA

This product is also available with our professional fitting service.

Please click on the blue button above if you wish to know more about this item and prices.

Or call us on 01268 768844 or visit our Battlesbridge showrooms.
